ESD Static Control Tile
The Quality Standard for Health Care, Electronics Assembly and Clean Rooms for Over 75 Years
VPI’s ESD Static Control Flooring is made for applications that require electrostatic discharge protection and/or low outgassing. In addition to health care, a key industry is electronics, where equipment and components can be damaged or impacted by static discharge nearly imperceptible to humans. In today’s high-tech world, smaller and faster electronic systems are more susceptible to damage caused by static electricity and thus require much greater protection.
Proudly made in the USA, VPI static control tiles emit zero detectable VOC’s and can contribute to several LEED credits.

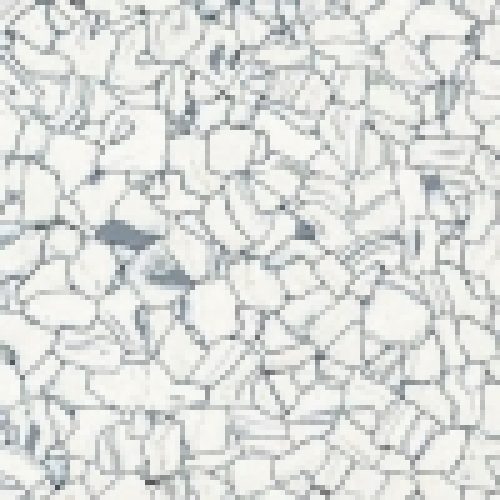

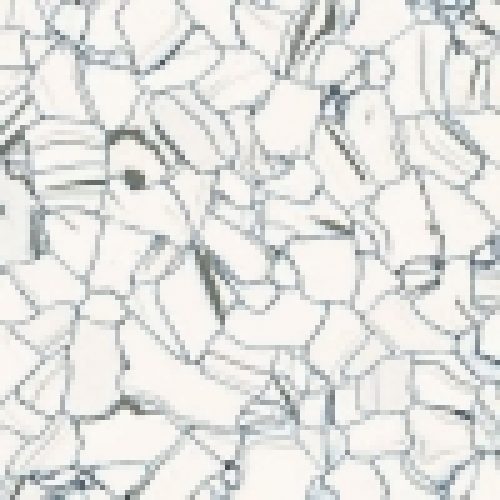

Available Colors
10 Black Ice
21 Rain Forest
09 Glacier
17 Platinum
92 Patriot
30 Eggplant
152 Winter White
16 Cloud
02 White
153 Bone
93 Storm
Specifications:
Thickness:
1/8″ (3mm)
Tile Sizes:
12″ x 22″
36″ x 36″ (special order — minimums apply)
Carton Size:
45 SF (45 tiles)
Adhesives/Spread Rate:
#150 Conductive Epoxy – covers 135 sf/gal
#165 Conductive Acrylic – covers 135 sf/gal
Trowel Size:
1/16″ x 1/16″ square notch
Electrical Resistance:
25,000 — 1,000,000 ohms
Load Rating:
2,500 psi
Warranty:
Wear Through 25 Years
Free From Defects 75 Years
Electrical Performance Lifetime
